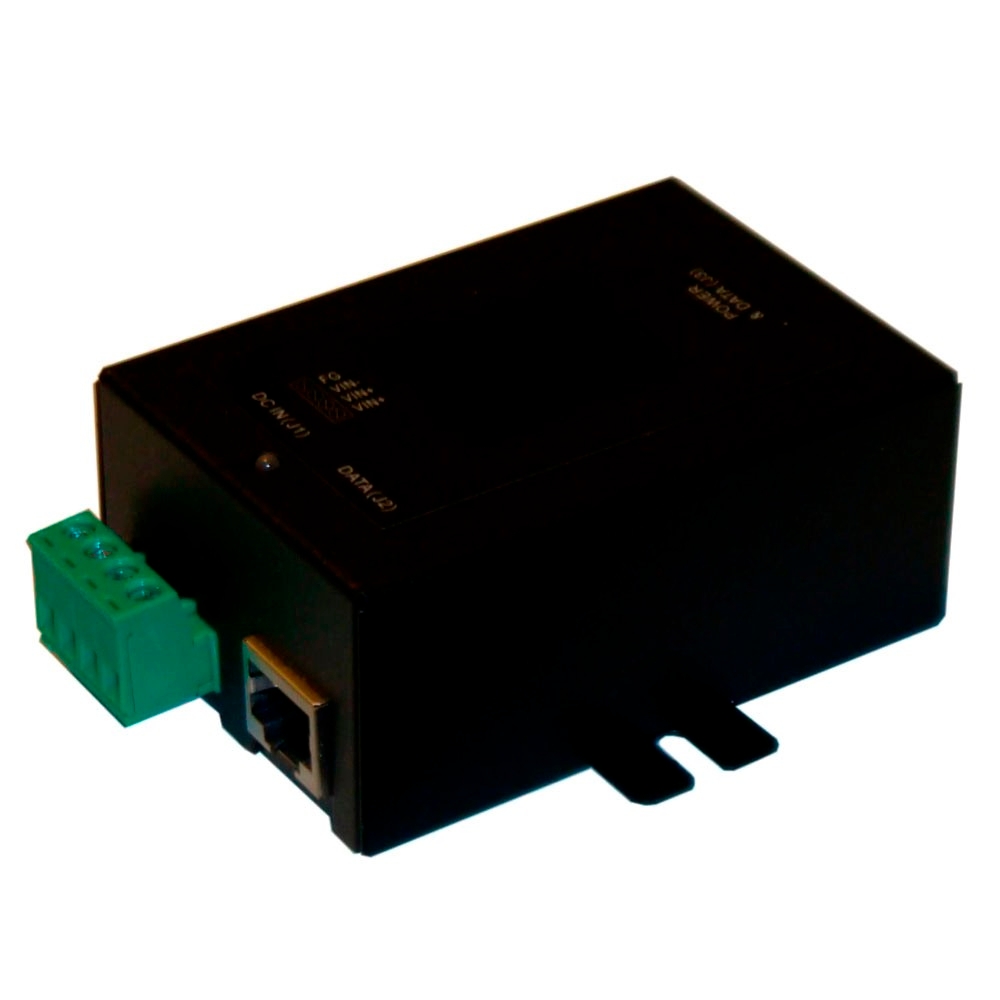

Tycon Power TP-DCDC-1248-M | 10-36VDC Input, 48V Passive PoE Output, 20W


Product Highlights
  • • DC to DC Converter
  • • Input Voltage 10-36VDC
  • • Output 48VDC Passive, 20W
  • • Dual Inputs
  • • Integrated 10/100MB POE Inserter

    • Model#: TP-DCDC-1248-M

    Sku: IT2842



    MSRP: $82.00

    In Stock

    Your Price: $82.00






    MODEL: TP-DCDC-1248-M

    The TP-DCDC-1248-M offered by Tycon Power is a cost-effective and highly reliable DC to DC Converter solution for those requiring 48VDC Power over Ethernet (PoE) voltage from a 12V or 24V battery system. This unit features an integrated PoE injector that applies 48VDC to the CAT5/6 Ethernet cable, ensuring a stable and regulated 48VDC output from an input voltage range of 10VDC to 36VDC. The TP-DCDC-1248-M is designed with one common (-) and two (+) inputs, allowing for the connection of two power sources, such as a primary and a backup power source, to ensure uninterrupted operation.

    The unit accepts data-in through a shielded RJ45 jack and provides data-out and PoE power through the shielded RJ45 output jack. It supplies power on the unused Ethernet pins 4,5(V+) and 7,8(V-), making it compatible with various PoE devices. For applications requiring the IEEE 802.3af handshake, an IEEE 802.3af compliant model is available.

    The injector is equipped with multiple protection features, including surge protection, short circuit protection, and overload protection, safeguarding your equipment and ensuring longevity. The unit has a power output capacity of up to 20W, making it suitable for a wide range of applications. Additionally, the TP-DCDC-1248-M is DIN rail mountable using DIN Rail adaptors (pn: DIN-ClipKit-UNI), providing flexibility and ease of installation in industrial environments.

    Whether you need to power remote systems or industrial applications, the TP-DCDC-1248-M offers a reliable and efficient solution for your power needs.

    Features – DC to DC Converter

    • DC to DC Converter

    • Input Voltage 10-36VDC; Output 48VDC Passive
    • Dual Inputs for connecting 2 power sources
    • Integrated 10/100MB POE Inserter
    • High Power up to 20W
    • Short Circuit, Over Current and Reverse/Over Voltage Protection
    • High Temperature Operation
    • Compact size – Maximize Available Space
    • I.T.E. Power Supply

    Applications

    • 12V / 24V Battery Systems
    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems

    Specifications TP-DCDC-1248-M

    DC Input Voltage 9VDC – 36VDC
    DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
    DC Output Voltage (+/-2.5%) 48V (Passive)
    Data in & Data/POE Output Connector RJ45 (Shielded)
    Output Current (max) 0.5A
    Output Power (max) 24W
    Self Consumption Power 1W
    Efficiency (min) 0.75
    Line Regulation 0.01
    Load Regulation 0.05
    Ripple 0.01
    Noise 0.01
    EMC Standards FCC Class B NE55022 Class B
    Safety Standards UL1950, CSA 22.2 &TUV EN60950
    Operating Temperature -30 to +60°C (-22 to +140°F)
    Operating Humidity (RH) 5% - 90%
    Storage Temperature -40 to +80°C (-40 to +176°F)
    Dimensions (LxWxH) 85 x 76 x 36mm (3.4 x 3 x 1.4”)
    Weight 134g (4.7oz)

    Datasheet

    PDF File Tycon Power TP-DCDC-1248-M | 10-36VDC Input, 48V Passive PoE Output, 20W
